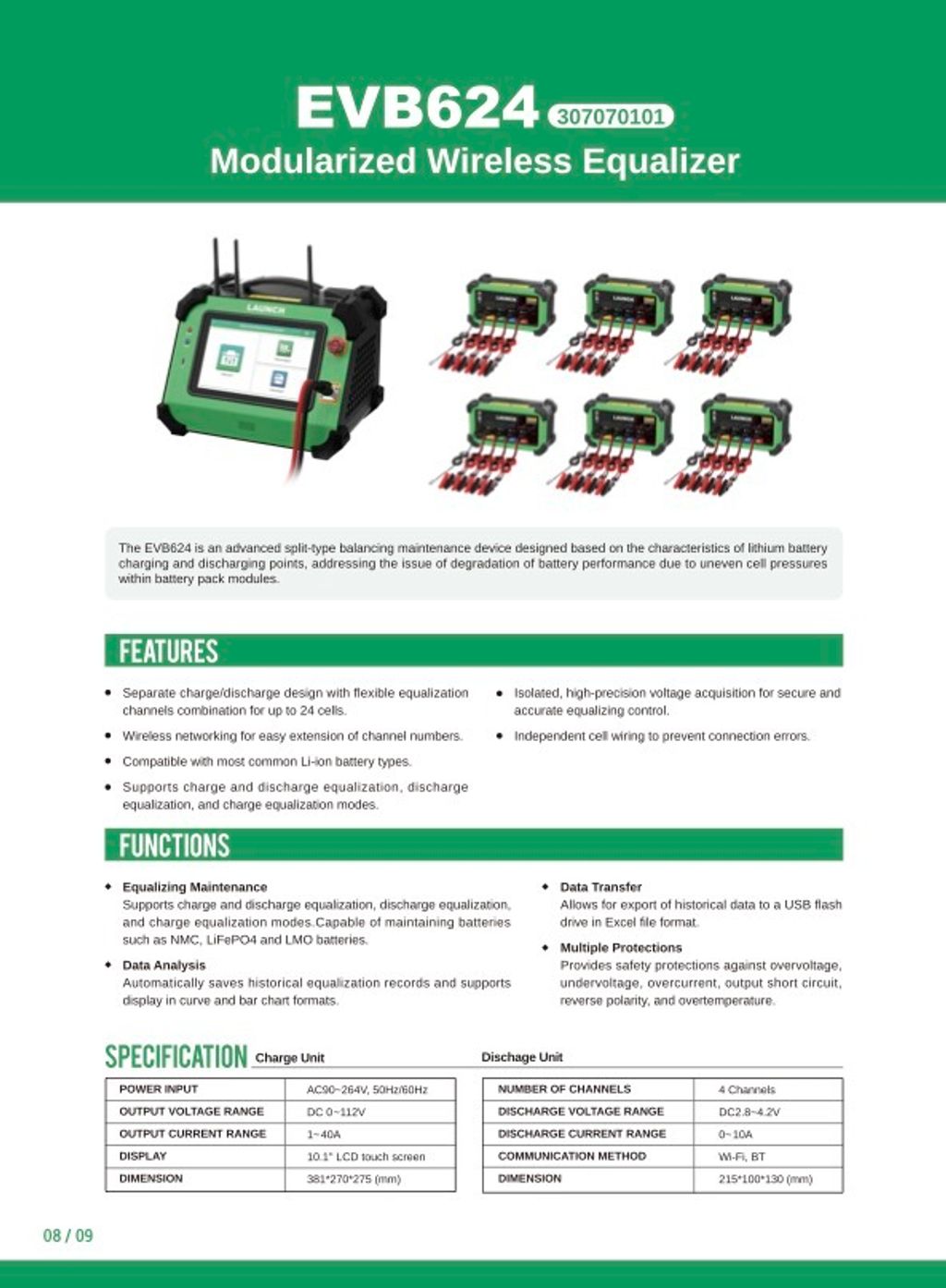

LAUNCH® | EVB624

EV Battery Pack Cell Wireless Equalizer(24 Channels). The EVB624 is used for balancing the internal cells of battery packs. When detecting significant voltage variance or inconsistent cell voltages among cells within battery packs, use the EVB624 to address the issue of excessive voltage variance. Once the cells inside the battery module are replaced, the EVB624 is widely used to balance the cells, ensuring that the voltage levels of individual cells are uniform.

Features

• 1 Charging Unit + 6 Discharging Units
• Separate charging and discharging design, with balancer channels freely combinable, supporting simultaneous balancing of up to 24 battery cells. (Each discharge unit supports 4 channels).
• Wireless networking communication facilitates the expansion of balancer channel quantity.
• Compatible with all common lithium battery types on the market.
• Supports two modes: charge&discharge balance and discharge balance.
• High-precision voltage acquisition module for safe and precise balancing control.
• Each battery cell is wired separately and independently, effectively avoiding connection errors.
• Safety Protections: Overvoltage, undervoltage, overcurrent, output short circuit, reverse connection, overtemperature, etc.

Technical data
